Sale!

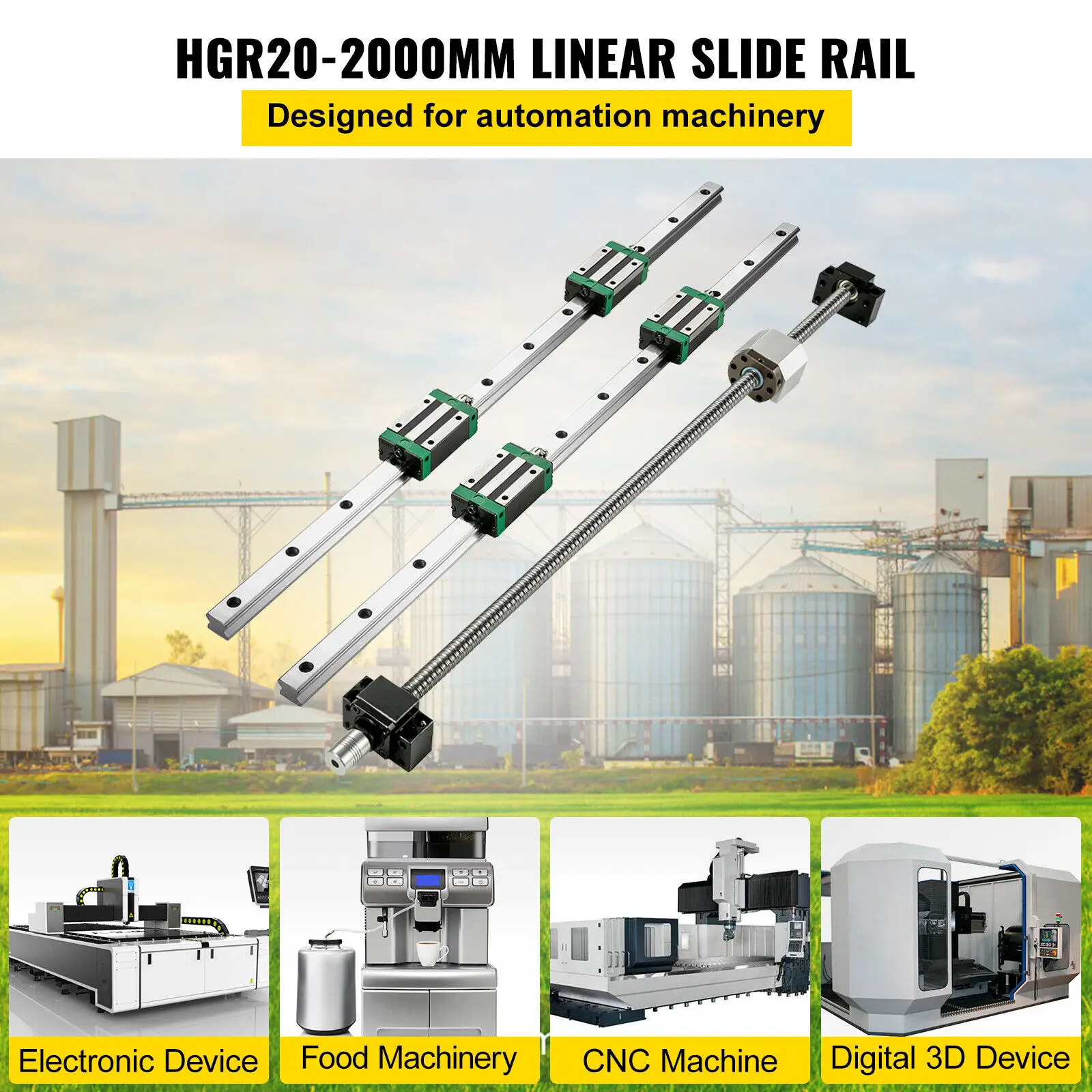

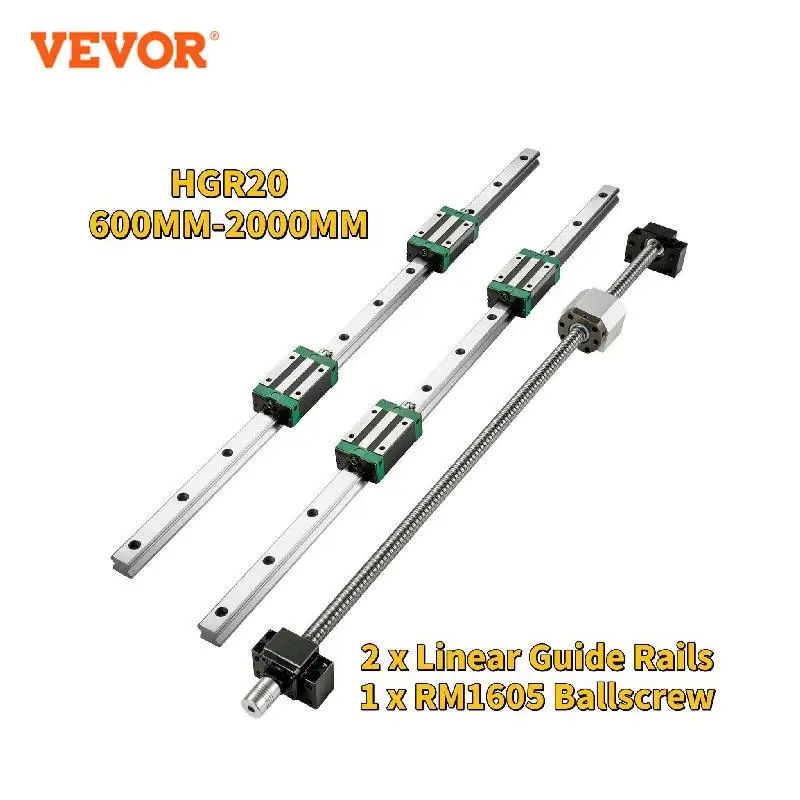

VEVOR HGR20 2PCS Linear Guide Rails 600-2000MM 4PCS Slide Blocks RM1605 Ballscrew W/ Ball Nut BF12/BK12 Nut for CNC DIY Routers

1.053,86 kr. 1.784,71 kr.Price range: 1.053,86 kr. through 1.784,71 kr.

  • Brand Name: VEVOR
  • Origin: Mainland China
  • Hign-concerned Chemical: None
  • Certification: CE
  • Type: HGR20 Slide Rail
  • Material: Gcr15 Steel
  • Nuts: BF12/BK12 nuts
  • Performance: Smooth Motion, Low Noise
  • Allowable Static Torque: 0.17kNm
  • Static Load Ratings: 25.31
  • Fixing Screw Hole Size: M4x16mm
  • Rail Shaft Length: 1000mm,1500mm,700mm,1700mm
  • Product: HGR20 Linear Guide Rails
Product Description
Linear Guide Rail
HGR20-700/1000/1500/1700/2000 mm
High Precision & Smooth Operation & Complete Set
This linear guideway rail is of 2 pieces of700 mm / 27.5" or

1000 mm / 39.4" or

1500 mm / 59" or

1700 mm / 66.9" or

2000 mm / 78.7" long HGR20 rail shafts, 4 blocks, and a ballscrew kit. High-quality steel material extends the service life of the shaft, and the machine. Move smoothly without deflection, minimal wear, and low noise

  • 700/1000/1500/1700/2000mm HGR20 Linear Guide Rail

  • High-quality Steel Material

  • Premier Linear Guiding System

  • Easy to Assemble

Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million plus members worldwide.
Why Choose VEVOR?

  • Premium Tough Quality

  • Incredibly Low Prices

  • Fast & Secure Delivery

  • 30-Day Free Returns

  • 24/7 Attentive Service

Note: Please refer to the Specification at the bottom for details of the parameters of different models!
Key Features
HGR20-700 Linear Rail Kits
Linear slide kit includes 2 pieces of 700 mm / 27.5" long HGR20 rail shafts, 4 blocks, and a ballscrew kit.
High-quality Material
This bearing rail is constructed with carbon steel main axle, GCr15 bearing steel linear rail block and aluminum alloy casing. Corrosion-resistant, high strength, and wear resistance.
High Hardness & Rigidity
Surface chrome plating treatment beautiful anti-rust, hardness can as high as HRC62, with high accuracy and strong durability.
Complete Sliding Unit
Professional and technical rail and block, stabilizing the original rail. Move smoothly without deflection, minimal wear and low noise while using.
Easy to Assemble
Pre-drilled holes on the support rail mount for ease of mounting, saving time and effort.
Extensive Application
Linear motion rail is perfect for your DIY routers, mills, lathes, widely used in automation machinery, and also suitable for automatic equipment, precision measuring equipment.
HGR20-700mm Specifications

  • Type: HGR20 Slide Rail

  • Material: Gcr15 Steel

  • Rail Shaft Length: 27.5 in / 70 cm

  • Nuts: BF12 / BK12 Nuts

  • Fixing Screw Hole Size: M4 x 16 mm

  • Static Load Ratings: 25.31

  • Allowable Static Torque: 0.17 KN.m

  • Performance: Smooth Motion, Low Noise

  • Net Weight: 13 lbs / 6 kg

  • Block Dimensions(L x W x H) : 2.8 x 1.6 x 1.3 in / 7.3 x 4.2 x 3.4 cm

Package Content

  • 2 x HGR20-700 mm Linear Guide Rails

  • 4 x Slide Blocks

  • 1 x RM1605-700 mm Ballscrew

  • 1 x Ball Nut

  • 1 x BF12 / BK12 Nut

  • 1 x Plum Coupling

HGR20-1000mm Specifications

  • Type: HGR20 Slide Rail

  • Material: Gcr15 Steel

  • Rail Shaft Length: 39.3 in / 100 cm

  • Nuts: BF12 / BK12 Nuts

  • Fixing Screw Hole Size: M4 x 16 mm

  • Static Load Ratings: 25.31

  • Allowable Static Torque: 0.17 KN.m

  • Performance: Smooth Motion, Low Noise

  • Net Weight: 24 lbs / 11 kg

  • Block Dimensions(L x W x H) : 2.8 x 1.6 x 1.3 in / 7.3 x 4.2 x 3.4 cm

Package Content

  • 2 x HGR20-1000 mm Linear Guide Rails

  • 4 x Slide Blocks

  • 1 x RM1605-1000 mm Ballscrew

  • 1 x Ball Nut

  • 1 x BF12 / BK12 Nut

  • 1 x Plum Coupling

HGR20-1500mm Specifications

  • Type: HGR20 Slide Rail

  • Material: Gcr15 Steel

  • Rail Shaft Length: 59 in / 1500 mm

  • Nuts: BF12 / BK12 Nuts

  • Fixing Screw Hole Size: M4 x 16 mm

  • Static Load Ratings: 25.31

  • Allowable Static Torque: 0.17 KN.m

  • Performance: Smooth Motion, Low Noise

  • Net Weight: 18 lbs / 8 kg

  • Block Dimensions(L x W x H) : 2.8 x 1.6 x 1.3 in / 7.3 x 4.2 x 3.4 cm

Package Content

  • 2 x HGR20-1500 mm Linear Guide Rails

  • 4 x Slide Blocks

  • 1 x RM1605-1500 mm Ballscrew

  • 1 x Ball Nut

  • 1 x BF12 / BK12 Nut

  • 1 x Plum Coupling

HGR20-1700mm Specifications

  • Type: HGR20 Slide Rail

  • Material: Gcr15 Steel

  • Rail Shaft Length: 66.9 in / 170 cm

  • Nuts: BF12 / BK12 Nuts

  • Fixing Screw Hole Size: M4 x 16 mm

  • Static Load Ratings: 25.31

  • Allowable Static Torque: 0.17 KN.m

  • Performance: Smooth Motion, Low Noise

  • Net Weight: 27 lbs / 12 kg

  • Block Dimensions(L x W x H) : 2.8 x 1.6 x 1.3 in / 7.3 x 4.2 x 3.4 cm

Package Content

  • 2 x HGR20-1700 mm Linear Guide Rails

  • 4 x Slide Blocks

  • 1 x RM1605-1700 mm Ballscrew

  • 1 x RM1605 Ball Nut

  • 1 x BF12 / BK12 Nut

  • 1 x Plum Coupling

HGR20-2000mm Specifications

  • Type: HGR20 Slide Rail

  • Material: Gcr15 Steel

  • Rail Shaft Length: 78.7 in / 2000 mm

  • Nuts: BF12 / BK12 Nuts

  • Fixing Screw Hole Size: M4 x 16 mm

  • Static Load Ratings: 25.31

  • Allowable Static Torque: 0.17 KN.m

  • Performance: Smooth Motion, Low Noise

  • Net Weight: 24 lbs / 10 kg

  • Block Dimensions(L x W x H) : 2.8 x 1.6 x 1.3 in / 7.3 x 4.2 x 3.4 cm

Package Content

  • 2 x HGR20-2000 mm Linear Guide Rails

  • 4 x Slide Blocks

  • 1 x RM1605-2000 mm Ballscrew

  • 1 x Ball Nut

  • 1 x BF12 / BK12 Nut

  • 1 x Plum Coupling

Features & Details

  • 700 mm HGR20 Linear Guide Rail: This linear guide rail set includes 2 pieces of HGR20-700 mm linear guide rail, 4 blocks, 1pcs RM1605-700 mm ballscrew, 1pcs ball nut, 1pcs BF12/BK12 nut, and 1pcs plum coupling.

  • 1000 mm HGR20 Linear Guide Rail: This linear guide rail set includes 2 pieces of HGR20-1000 mm linear guide rail, 4 blocks, 1pcs RM1605-1000 mm ball screw with end machined, 1pcs RM1605 ball nut, 1 set BF12/BK12 end support, and 1pcs plum coupling.

  • 1500 mm HGR20 Linear Guide Rail: This linear guide rail set includes 2 pieces of HGR20-1500 mm linear guide rail, 4 blocks, 1pcs anti-reverse RM1605-1500 mm ballscrew, 1pcs ball nut, 1pcs BF12 / BK12 nut, and 1pcs 6.35 x10 mm plum coupling.

  • 1700 mm HGR20 Linear Guide Rail: This linear guide rail set includes 2 pieces of HGR20-1700mm linear guide rail, 4 blocks, 1pcs anti-reverse RM1605-1700mm ballscrew, 1pcs RM1605 ball nut, 1pcs BF12/BK12 nut, and 1pcs 8 x12mm plum coupling.

  • 2000 mm HGR20 Linear Guide Rail: This linear guide rail set includes 2 pieces of HGR20-2000mm linear guide rail, 4 blocks, 1pcs RM1605-2000mm ballscrew, 1pcs ball nut, 1pcs BF12/BK12 nut, and 1pcs 8x12mm plum coupling.

  • High-Quality Steel Material: Linear guides are made of carbon steel, linear bearings are made of GCr15 bearing steel. Surface chrome plating treatment beautiful anti-rust, hardness can as high as HRC62, more durable.

  • Premier Linear Guiding System: Motor-driven guide rail achieves high precision linear motion. They are designed to achieve high precision linear motion and low friction coefficient.

  • Effortless to Install: Steel support rail with pre-drilled holes for ease of mounting. Stainless steel Linear optical axis guide bearings linear movement. Easy to install, no need for maintenance.

  • Versatile Application: The CNC linear rail is widely used in automatic equipment, precision measuring equipment, and many other machines that need precision linear movement.

Hign-concerned Chemical

None
Brand Name

VEVOR
Origin

Mainland China
Type

HGR20 Slide Rail
Material

Gcr15 Steel
Nuts

BF12/BK12 nuts
Performance

Smooth Motion, Low Noise
Allowable Static Torque

0.17kNm
Static Load Ratings

25.31
Fixing Screw Hole Size

M4x16mm
Rail Shaft Length

1000mm,1500mm,700mm,1700mm
Product

HGR20 Linear Guide Rails
Color

2PCS HGR20-1000mm, 2PCS HGR20-1500mm, 2PCS HGR20-1700mm, 2PCS HGR20-700mm
Certification

CE
Ships From

CZECH REPUBLIC, france, GERMANY, Poland, spain, United States
